X350.5

Best of 2001 - Audio Revolution

Editor's Choice Award - The Absolute Sound

The X350.5 is the natural progression of the X350. Changes include improvements to power transformers, paralleled high speed / soft recovery rectifiers, improved AC EMI filters, more paralleled power supply capacitors, increased supply RC filtering, refinements to the front-end input circuits, and the addition of single-ended Class A bias circuits for balanced single-ended Class A at low power levels.

All of these changes bring the X.5 series closer to the sonic signature of the XA series amplifiers.

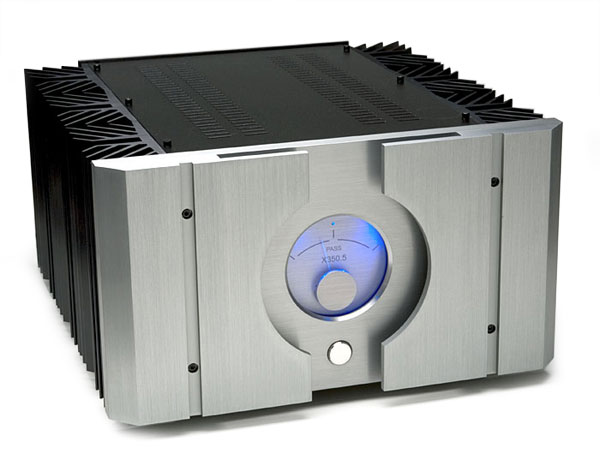

The X.5 series feature the distinctive front panel meters indicating of the level of current running through the output stages that have long been the visual signature of X amplifiers.

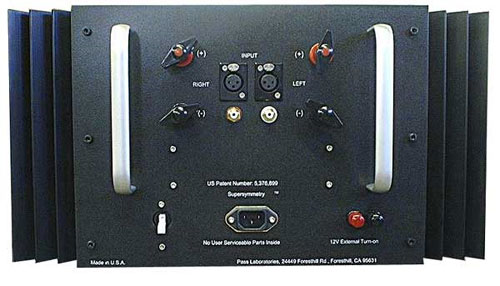

The X350.5 accepts both single-ended and balanced inputs.

The most power in a stereo chassis, the X350.5

See table below for specs:

[SinglePic not found]

Product:	X350.5
Gain (dB)	26/30
Sensitivity @ 26dB gain(V)	2.65
Sensitivity @ 30dB gain(V)	1.67
Low Freq. Response	1.5 Hz
High Freq. Response	100KHz
Power Output/ch (8 ohm)	350
Power Output/ch (4 ohm)	700
Distortion, (1KHz, full power)	1 %
Maximum Output (V)	76
Maximum Output (A)	28
Input impedance (Kohms)	30/20
Damping Factor	150
Slew Rate (V/uS)	50
Output Noise (uV)	200
CMMR (dB)	-60
DC offset (V)	0.05
Leaves Class A at pk Watts	40
Power Consumption (W)	600
Temperature (deg C.)	53
Dimensions(WxHxD)	19 x 11 x 21.5
Ship Weight	150 Lbs

Download Owner’s Manual here.
Download Literature here.

pris 79000kr
