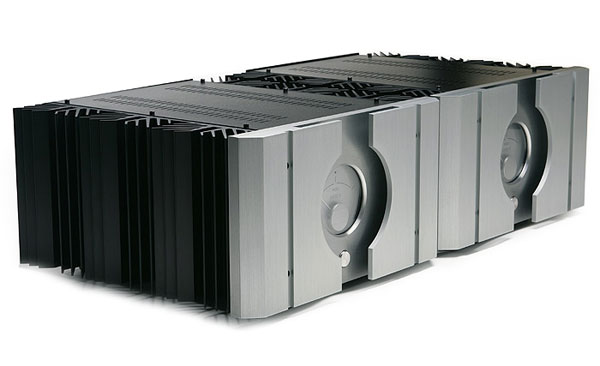

X600.5

Best Buy - HiVi Audio Visual Magazine

Jazz Component Award 2005 - Swing Journal Magazine

Grand Prix - Stereo Sound

Radio Engineering's COMPO GRAND PRIX AWARD

The X600.5 is the natural progression of the X600. Changes include improvements to power transformers, paralleled high speed / soft recovery rectifiers, improved AC EMI filters, more paralleled power supply capacitors, increased supply RC filtering, refinements to the front-end input circuits, and the addition of single-ended Class A bias circuits for balanced single-ended Class A at low power levels.

All of these changes bring the X.5 series closer to the sonic signature of the XA series amplifiers.

The X.5 series feature the distinctive front panel meters indicating of the level of current running through the output stages that have long been the visual signature of X amplifiers.

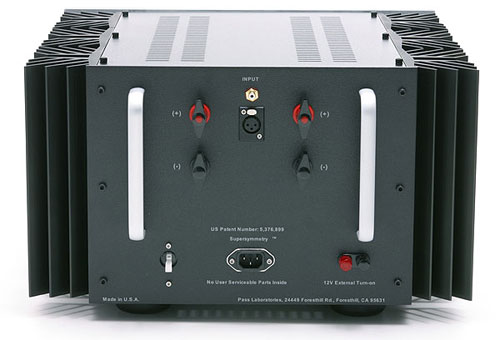

The X600.5 accepts both single-ended and balanced inputs.

Enough power to satisfy the most thirsty setups, from large electrostats to concert stacks.

See table below for specs:

Product:	X600.5
Gain (dB)	26/30
Sensitivity @ 26dB gain(V)	3.46
Sensitivity @ 30dB gain(V)	2.19
Low Freq. Response	1.5 Hz
High Freq. Response	100KHz
Power Output/ch (8 ohm)	600
Power Output/ch (4 ohm)	1200
Distortion, (1KHz, full power)	1 %
Maximum Output (V)	99
Maximum Output (A)	36
Input impedance (Kohms)	30/20
Damping Factor	200
Slew Rate (V/uS)	50
Output Noise (uV)	200
CMMR (dB)	-60
DC offset (V)	0.05
Leaves Class A at pk Watts	80
Power Consumption (W)	600
Temperature (deg C.)	53
Dimensions(WxHxD)	19 x 11 x 21.5
Ship Weight	150 Lbs

Download Owner’s Manual here.
Download Literature here.
